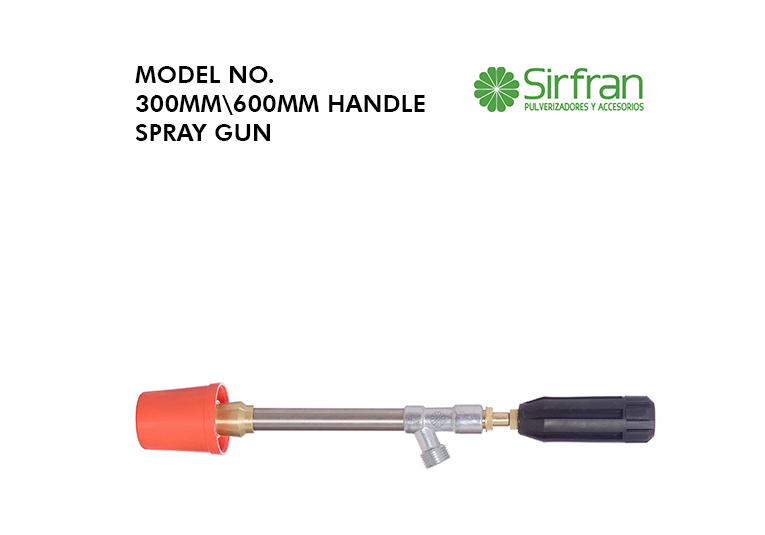

For low to medium tree/ plant spraying (10 feet to 25 feet height ) Adjustable spray pattern, fine nebulization , even coverage with turbo protection, integrated ceramic spray tip in various sizes. Easy options available : Trigger assembly, Elbow 90 and Hose swivel ½
MAX OPERATING PRESSURE (PSI) | WEIGHT(G) | TURBO PROTECTION CERAMIC DISCS | TRIGGER OPTION | |
300 MM HANDLE SPRAY GUN | 435 PSI/ 30 BAR | 340 GM | 1.0MM/1.2MM/ 1.5MM/1.8MM | YES |
600 MM HANDLE SPRAY GUN | 600 PSI/ 40 BAR | 500 GM | 1.0MM/1.2MM/1.5MM/1.8MM | YES |
SPRAY : DATA
DISC SIZE (MM) | DISC SIZE (MM) | 200 PSI / 15 BAR | 400 PSI / 30 BAR | 700 PSI / 50 BAR | ||||||||||||
1.0 mm | Spray angle | 30 | 35 | 40 | ||||||||||||
Spray capacity (ltr/ min) |
|
|
| |||||||||||||
Max throw (mtr) |
|
|
| |||||||||||||
DISC SIZE (MM) | DISC SIZE (MM) | 200 PSI / 15 BAR | 400 PSI / 30 BAR | 700 PSI / 50 BAR | ||||||||||||
1.2 mm | Spray angle | 35 | 40 | 45 | ||||||||||||
Spray capacity (ltr/ min) |
|
|
| |||||||||||||
Max throw (mtr) |
|
|
| |||||||||||||
DISC SIZE (MM) | DISC SIZE (MM) | 200 PSI / 15 BAR | 400 PSI / 30 BAR | 700 PSI / 50 BAR | ||||||||||||
1.5 mm | Spray angle | 40 | 45 | 50 | ||||||||||||
Spray capacity (ltr/ min) |
|
|
| |||||||||||||
Max throw (mtr) |
|
|
| |||||||||||||
DISC SIZE (MM) | DISC SIZE (MM) | 200 PSI / 15 BAR | 400 PSI / 30 BAR | 700 PSI / 50 BAR | ||||||||||||
1.8 mm | Spray angle | 50 | 55 | 60 | ||||||||||||
Spray capacity (ltr/ min) |
|
|
| |||||||||||||
Max throw (mtr) |
|
|
|
